JFSTEEL-LEAD BONZE ALLOY BUSHES
Product Name：

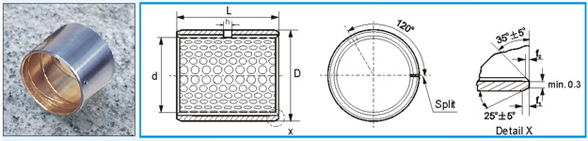

JFSTEEL-LEAD BONZE ALLOY BUSHES



JFSTEEL-LEAD BONZE ALLOY BUSHES
Unit:mm
d D Wall thickness O.D. I.D.(H8) Housing bore
H7 		Diameter of axlef7 f1 f2 L-0.40
10 15 20 25 30 40 50
10 12 1-0.025 12+0.065
+0.030 		10+0.022
+0.000 		12+0.018 10-0.013
-0.028 		0.5 0.3 1010 1015 1020
12 14 14+0.065
+0.030 		12+0.027
+0.000 		14+0.018 12-0.016
-0.034 		0.5 0.3 1210 1215 1220
14 16 16+0.065
+0.030 		14+0.027
+0.000 		16+0.018 14-0.016
-0.034 		0.5 0.3 1410 1415 1420
15 17 17+0.065
+0.030 		15+0.027
+0.000 		17+0.018 15-0.016
-0.034 		0.5 0.3 1510 1515 1520
16 18 18+0.075
+0.035 		16+0.027
+0.000 		18+0.018 16-0.016
-0.034 		0.8 0.4 1610 1615 1620
18 20 20+0.075
+0.035 		18+0.033
+0.000

20+0.021

18-0.016
-0.034 		0.8 0.4 1810 1815 1820 1825
20 23 1.5-0.030 23+0.075
+0.035 		20+0.033
+0.000 		23+0.021 20-0.020
-0.041 		0.8 0.4 1210 1215 1220 1225
22 25 25+0.075
+0.035 		22+0.033
+0.000 		25+0.021 22-0.020
-0.041 		0.8 0.4 2210 2215 2220 2225
24 27 27+0.075
+0.035 		24+0.033
+0.000 		27+0.021 24-0.020
-0.041 		1.0 0.5 2410 2415 2420 2425 2430
25 28 28+0.075
+0.035 		25+0.033
+0.000 		28+0.021 25-0.020
-0.041 		1.0 0.5 2515 2520 2525 2530
26 30 2-0.035 30+0.075
+0.035 		26+0.033
+0.000 		30+0.021 26-0.020
-0.041 		1.0 0.5 2615 2620 2625 2630
28 32 32+0.085
+0.045 		28+0.033
+0.000 		32+0.025 28-0.020
-0.041 		1.0 0.5 2815 2820 2825 2830 2840
30 34 34+0.085
+0.045 		30+0.039
+0.000 		34+0.025 30-0.020
-0.041 		1.2 0.6 3015 3020 3025 3030 3040
32 36 36+0.085
+0.045 		32+0.039
+0.000 		36+0.025 32-0.025
-0.050 		1.2 0.6 3215 3220 3225 3230 3240
35 39 39+0.085
+0.045 		35+0.039
+0.000 		39+0.025 35-0.025
-0.050 		1.2 0.6 3520 3525 3530 3540 3550
38 42 42+0.085
+0.045 		38+0.039
+0.000 		42+0.025 38-0.025
-0.050 		1.2 0.6 3820 3825 3830 3840 3850
40 44 44+0.085
+0.045 		40+0.039
+0.000 		44+0.025 40-0.025
-0.050 		1.2 0.6 4020 4025 4030 4040 4050
Unit:mm
d D Wall thickness O.D. I.D.(H8) Housing bore
H7 		Diameter of axlef7 f1 f2 L-0.40
10 15 20 25 30 40 50
45 50 2.5-0.040 50+0.085
+0.045 		45+0.039
+0.000 		50+0.025 45-0.025
-0.050 		1.5 1.0 4520 4525 4530 4540 4550
50 55 55+0.100
+0.050 		50+0.039
+0.000 		55+0.030 50-0.030
-0.050 		1.5 1.0 5030 5040 5050
55 60 60+0.100
+0.050 		55+0.046
+0.000 		60+0.030 55-0.030
-0.050 		1.5 1.0 5530 5540 5550
60 65 65+0.100
+0.050 		60+0.046
+0.000 		65+0.030 60-0.030
-0.050 		1.5 1.0       6030 6040 6050
65 70 70+0.100
+0.050 		65+0.046
+0.000 		70+0.030 65-0.030
-0.060 		1.5 1.0         6530 6540 6550
70 75 75+0.100
+0.050 		70+0.046
+0.000 		75+0.030 70-0.030
-0.060 		1.5 1.0 7030 7040 7050
75 80 80+0.100
+0.050 		75+0.046
+0.000 		80+0.035 75-0.030
-0.060 		1.5 1.0 7530 7540 7550
80 85 85+0.120
+0.070 		80+0.054
+0.000 		85+0.035 80-0.030
-0.060 		1.5 1.0 8040 8050
84 90 3-0.045 90+0.120
+0.070 		84+0.054
+0.000 		90+0.035 84-0.036
-0.071 		1.5 1.2 8440 8450
89 95 95+0.120
+0.070 		89+0.054
+0.000 		95+0.035 89-0.036
-0.071 		1.8 1.2 8940 8950
94 100 100+0.120
+0.070 		94+0.054
+0.000 		100+0.035 94-0.036
-0.071 		1.8 1.2 9450
99 105 105+0.120
+0.070 		99+0.054
+0.000 		105+0.035 99-0.036
-0.071 		1.8 1.2 9950
104 110 110+0.120
+0.070 		104+0.054
+0.000 		110+0.035 104-0.036
-0.071 		1.8 1.2 10450
109 115 115+0.120
+0.070 		109+0.054
+0.000 		115+0.035 109-0.036
-0.071 		1.8 1.2 10950
114 120 120+0.120
+0.070 		114+0.054
+0.000 		120+0.040 114-0.036
-0.083 		1.8 1.2 11450
119 125 125+0.170
+0.0100 		119+0.054
+0.000 		125+0.040 119-0.036
-0.083 		1.8 1.2 11950
123 130 3.3-0.050 130+0.170
+0.0100 		123+0.054
+0.000 		130+0.040 123-0.043
-0.083 		2 1.5 12350
128 135 135+0.170
+0.0100 		128+0.063
+0.000 		135+0.040 128-0.043
-0.083 		2 1.5 12850
133 140 140+0.170
+0.0100 		133+0.063
+0.000 		140+0.040 133-0.043
-0.083 		2 1.5 13350
138 145 145+0.170
+0.0100 		138+0.063
+0.000 		145+0.040 138-0.043
-0.083 		2 1.5
143 150 150+0.170
+0.0100 		143+0.063
+0.000 		150+0.040 143-0.043
-0.083 		2 1.5
148 155 155+0.170
+0.0100 		148+0.063
+0.000 		155+0.040 148-0.043
-0.083 		2 1.5
153 160 160+0.170
+0.0100 		153+0.063
+0.000 		160+0.040 153-0.043
-0.083 		2 1.5
158 165 165+0.170
+0.0100 		158+0.063
+0.000 		165+0.040 158-0.043
-0.083 		2 1.5
163 170 170+0.170
+0.0100 		163+0.063
+0.000 		170+0.040 163-0.043
-0.083 		2 1.5
168 175 175+0.170
+0.0100 		168+0.063
+0.000 		175+0.046 168-0.043
-0.083 		2 1.5
173 180 180+0.170
+0.0100 		173+0.063
+0.000 		180+0.046 173-0.043
-0.083 		2 1.5
